B-expfam writes when the script runsDictionary of Applied Machine Learning · convex
Numerical companion to the entry convex: it recomputes what the entry states and prints one line per check
Verifies the entry's two definitions and its ML claim on concrete objects: segment membership for a convex set, the chord inequality and epigraph convexity for the average squared error loss of linear regression, and the local-equals-global-minimum property via gradient descent from many random initializations. Self-contained (numpy only), fixed seed.
Run it with python3 pythondemos/convex.py, from the repository root — it writes its data files under pythondemos/. Requires NumPy and Matplotlib only, and uses fixed seeds, so the printed numbers reproduce exactly. Download convex.py
One cell per block of the script: the code, and what that code printed when it last ran here
"""
convex.py — numerical companion to the glossary entry 'convex'.
Purpose
-------
Verifies the entry's two definitions and its ML claim on concrete objects:
segment membership for a convex set, the chord inequality and epigraph
convexity for the average squared error loss of linear regression, and the
local-equals-global-minimum property via gradient descent from many random
initializations. Self-contained (numpy only), fixed seed.
Blocks
------
[B-set] The ellipse set C = {w : w^T diag(1, 4) w <= 4} contains
beta w + (1-beta) w' for 500 random pairs w, w' in C and
21 values beta in [0, 1].
[B-fn] The linear-regression objective f(w) = (1/m)||y - X w||^2
(m = 10, d = 2, seed 0) satisfies the chord inequality
f(beta w + (1-beta) w') <= beta f(w) + (1-beta) f(w')
for 500 random pairs and 21 values of beta.
[B-epi] Convex combinations of 500 random point pairs of the epigraph
{(w, t) : t >= f(w)} stay in the epigraph.
[B-global] Gradient descent on f from 20 random initializations always
reaches the same minimizer (pairwise distance < 1e-6) with the
least-squares optimum as its objective value: every local
minimum is global.
[B-half] Halfspace representation: C is contained in the intersection
P_k of k supporting halfspaces, and the area of P_k minus C
shrinks as k grows (k = 8, 32, 128): the intersection of all
supporting halfspaces recovers C.
Outputs
-------

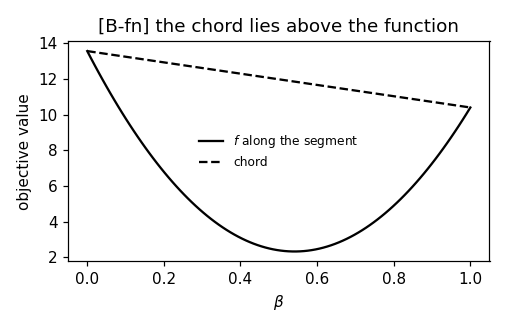

convex.png : matplotlib preview — 1-D slice of f with a chord above the
graph (checking only; the entry's figure is schematic TikZ).
"""
import numpy as np
import matplotlib
matplotlib.use("Agg")
import matplotlib.pyplot as plt
report = []
def check(name, ok):
report.append((name, bool(ok)))
print(f" [{'ok' if ok else 'FAIL'}] {name}")
rng = np.random.default_rng(0)
betas = np.linspace(0.0, 1.0, 21)
The ellipse set C = {w : w^T diag(1, 4) w <= 4} contains beta w + (1-beta) w' for 500 random pairs w, w' in C and 21 values beta in [0, 1].
D = np.diag([1.0, 4.0])
def in_set(w):
return np.einsum("...i,ij,...j->...", w, D, w) <= 4.0 + 1e-12
pts = rng.uniform(-2.0, 2.0, (5000, 2))
pts = pts[in_set(pts)][:1000]
pairs = pts.reshape(-1, 2, 2)[:500]
ok_set = all(in_set(b * p[0] + (1 - b) * p[1])
for p in pairs for b in betas)
check("[B-set] segments between set points stay in the set", ok_set)
[ok] [B-set] segments between set points stay in the set
The linear-regression objective f(w) = (1/m)||y - X w||^2 (m = 10, d = 2, seed 0) satisfies the chord inequality f(beta w + (1-beta) w') <= beta f(w) + (1-beta) f(w') for 500 random pairs and 21 values of beta.
m, d = 10, 2
X = rng.standard_normal((m, d))
y = X @ np.array([1.0, -2.0]) + 0.1 * rng.standard_normal(m)
def f(w):
r = y - X @ w
return float(r @ r) / m
W = rng.standard_normal((500, 2, 2)) * 3.0
ok_fn = all(f(b * w1 + (1 - b) * w2) <= b * f(w1) + (1 - b) * f(w2) + 1e-10
for w1, w2 in W for b in betas)
check("[B-fn] chord inequality for the linreg objective", ok_fn)
[ok] [B-fn] chord inequality for the linreg objective
Convex combinations of 500 random point pairs of the epigraph {(w, t) : t >= f(w)} stay in the epigraph.
ok_epi = True
for w1, w2 in W:
t1 = f(w1) + abs(rng.standard_normal()) # points above the graph
t2 = f(w2) + abs(rng.standard_normal())
for b in betas:
wb, tb = b * w1 + (1 - b) * w2, b * t1 + (1 - b) * t2
if tb < f(wb) - 1e-10:
ok_epi = False
check("[B-epi] epigraph is a convex set", ok_epi)
[ok] [B-epi] epigraph is a convex set
Gradient descent on f from 20 random initializations always reaches the same minimizer (pairwise distance < 1e-6) with the least-squares optimum as its objective value: every local minimum is global.
L = 2.0 * np.linalg.eigvalsh(X.T @ X / m).max()
eta = 1.0 / L
minimizers = []
for _ in range(20):
w = rng.standard_normal(2) * 5.0
for _ in range(2000):
w = w - eta * (2.0 / m) * X.T @ (X @ w - y)
minimizers.append(w)
minimizers = np.array(minimizers)
spread = np.max(np.linalg.norm(minimizers - minimizers[0], axis=1))
w_star, *_ = np.linalg.lstsq(X, y, rcond=None)
ok_glob = spread < 1e-6 and abs(f(minimizers[0]) - f(w_star)) < 1e-10
check("[B-global] GD from 20 random inits reaches the global minimum",
ok_glob)
[ok] [B-global] GD from 20 random inits reaches the global minimum
Halfspace representation: C is contained in the intersection P_k of k supporting halfspaces, and the area of P_k minus C shrinks as k grows (k = 8, 32, 128): the intersection of all supporting halfspaces recovers C.
# Supporting halfspace of C = {w : w^T D w <= 4} at boundary point p:
# normal n = D p, halfspace {w : n^T w <= n^T p}.
def polygon_gap_area(k, n_mc=200000):
"""Monte-Carlo area of P_k \\ C for the intersection P_k of k
supporting halfspaces at equally spaced boundary points."""
th = np.linspace(0.0, 2.0 * np.pi, k, endpoint=False)
bnd = np.c_[2.0 * np.cos(th), np.sin(th)] # boundary of C
N = bnd @ D # outward normals
c = np.einsum("ki,ki->k", N, bnd)
S = rng_mc.uniform(-2.4, 2.4, (n_mc, 2))
in_pk = np.all(S @ N.T <= c + 1e-12, axis=1)
in_c = in_set(S)
box = 4.8 * 4.8
contain_ok = not np.any(in_c & ~in_pk) # C subset of P_k
return box * np.mean(in_pk & ~in_c), contain_ok
rng_mc = np.random.default_rng(1)
gaps, contains = zip(*(polygon_gap_area(k) for k in (8, 32, 128)))
check("[B-half] C inside every halfspace intersection; gap area shrinks",
all(contains) and gaps[0] > gaps[1] > gaps[2] and gaps[2] < 0.02)
[ok] [B-half] C inside every halfspace intersection; gap area shrinks
# Linear separability of a binary trainset holds exactly when the convex
# hulls of the two classes do not intersect. Both directions are checked:
# hulls disjoint -> a separating (w, b) exists; hulls overlapping -> none
# does. Hull intersection is decided by the LP feasibility of
# sum_i a_i x_i^+ = sum_j c_j x_j^-, a, c >= 0, sum a = sum c = 1,
# solved here by projected gradient on the squared distance between the
# two hulls (zero distance <=> the hulls meet).
def hull_distance(P, N, iters=5000):
"""Distance between conv(P) and conv(N) by Frank-Wolfe with exact line
search on z = p - n, which stays in the (convex) Minkowski difference:
each step moves z toward the vertex p_i - n_j that the current z sees as
steepest, so ||z|| decreases monotonically to the true distance."""
z = P[0] - N[0]
for _ in range(iters):
# vertex of conv(P) - conv(N) minimizing the linear approximation
s_vert = P[np.argmin(P @ z)] - N[np.argmax(N @ z)]
diff = z - s_vert
denom = diff @ diff
if denom < 1e-18:
break
gam = min(1.0, max(0.0, (z @ diff) / denom)) # exact line search
z = z - gam * diff
return float(np.linalg.norm(z))
def separable(P, N, iters=20000, lr=0.1):
"""Perceptron-style search for (w, b) with y (w^T x + b) > 0."""
X = np.vstack([P, N])
y = np.r_[np.ones(len(P)), -np.ones(len(N))]
w, b = np.zeros(X.shape[1]), 0.0
for _ in range(iters):
m = y * (X @ w + b) <= 0
if not m.any():
return True
w += lr * (y[m] @ X[m])
b += lr * y[m].sum()
return bool(np.all(y * (X @ w + b) > 0))
rng_sep = np.random.default_rng(3)
P_far = rng_sep.normal(size=(12, 2)) * 0.3 + np.array([2.5, 0.0])
N_far = rng_sep.normal(size=(12, 2)) * 0.3 + np.array([-2.5, 0.0])
P_mix = rng_sep.normal(size=(12, 2)) * 0.9
N_mix = rng_sep.normal(size=(12, 2)) * 0.9
check(f"[B-sep] disjoint hulls (distance {hull_distance(P_far, N_far):.3f}) "
f"-> the trainset is linearly separable",
hull_distance(P_far, N_far) > 1e-3 and separable(P_far, N_far))
check(f"[B-sep] overlapping hulls (distance {hull_distance(P_mix, N_mix):.3f}) "
f"-> no linear classifier separates the trainset",
hull_distance(P_mix, N_mix) < 1e-3 and not separable(P_mix, N_mix))
[ok] [B-sep] disjoint hulls (distance 3.813) -> the trainset is linearly separable [ok] [B-sep] overlapping hulls (distance 0.000) -> no linear classifier separates the trainset
# Exponential family p(x; w) ~ h(x) exp(w^T T(x) - A(w)) on x in {0,1,2}
# with T(x) = (x, x^2), h = 1. Two claims of the entry: the log-partition
# function A is convex in w, and its gradient is the expectation of the
# sufficient statistics.
Tstat = np.c_[np.arange(3), np.arange(3) ** 2].astype(float)
def logpart(w):
return float(np.log(np.exp(Tstat @ w).sum()))
rng_ef = np.random.default_rng(5)
viol = 0
for _ in range(20000): # chord test for convexity of A
u, v = rng_ef.normal(size=2) * 1.5, rng_ef.normal(size=2) * 1.5
t = rng_ef.uniform()
if logpart(t * u + (1 - t) * v) > t * logpart(u) + (1 - t) * logpart(v) + 1e-12:
viol += 1
check(f"[B-expfam] the log-partition function A is convex "
f"({viol} chord violations in 20000 random pairs)", viol == 0)
w_ef = np.array([0.3, -0.2])
h_ef = 1e-6
gradA = np.array([(logpart(w_ef + h_ef * e) - logpart(w_ef - h_ef * e)) / (2 * h_ef)
for e in np.eye(2)])
pw = np.exp(Tstat @ w_ef)
pw /= pw.sum()
check(f"[B-expfam] grad A equals the expected sufficient statistics "
f"({gradA.round(4)} vs {(pw @ Tstat).round(4)})",
np.allclose(gradA, pw @ Tstat, atol=1e-5))
# -------------------------------------------------------------- preview
w0, w1v = np.array([-2.0, -3.0]), np.array([3.0, 1.0])
ts = np.linspace(0.0, 1.0, 100)
fig, ax = plt.subplots(figsize=(4.6, 3.0))
ax.plot(ts, [f(t * w1v + (1 - t) * w0) for t in ts], "k-",
label="$f$ along the segment")
ax.plot([0, 1], [f(w0), f(w1v)], "k--", label="chord")
ax.set_xlabel(r"$\beta$"), ax.set_ylabel("objective value")
ax.set_title("[B-fn] the chord lies above the function")
ax.legend(frameon=False, fontsize=8)
fig.tight_layout()
fig.savefig("pythondemos/convex.png", dpi=110)
n_ok = sum(ok for _, ok in report)
print(f"\n{n_ok}/{len(report)} checks pass")
print("wrote pythondemos/convex.png")
if n_ok != len(report):
raise SystemExit(1)
[ok] [B-expfam] the log-partition function A is convex (0 chord violations in 20000 random pairs) [ok] [B-expfam] grad A equals the expected sufficient statistics ([0.938 1.498] vs [0.938 1.498]) 9/9 checks pass wrote pythondemos/convex.png
B-expfam writes when the script runs
